📊 Evaluations
🖼️ I. Qualitative Results (Generated Scene Graphs)

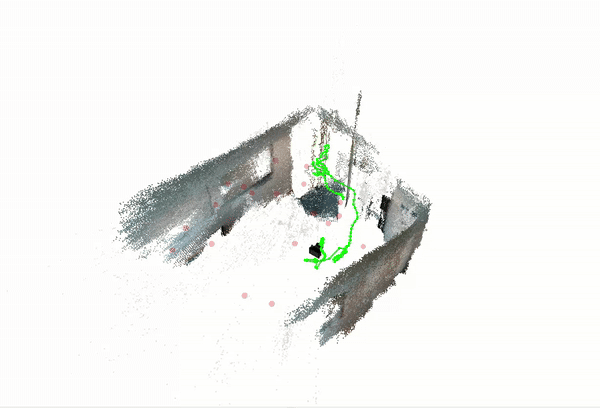

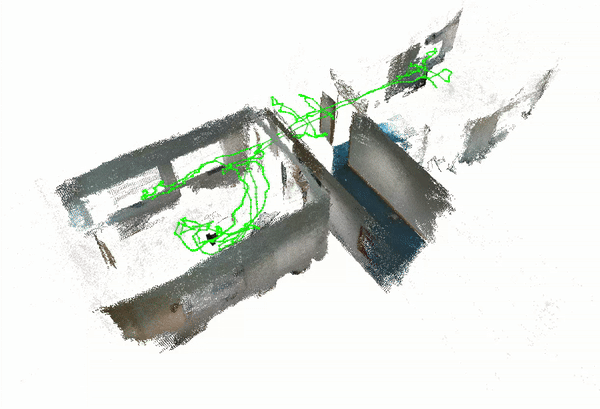

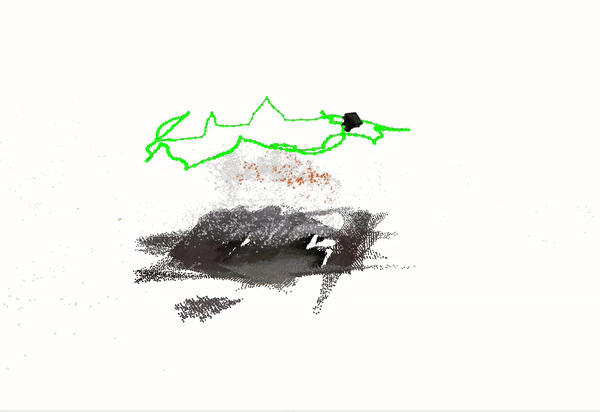

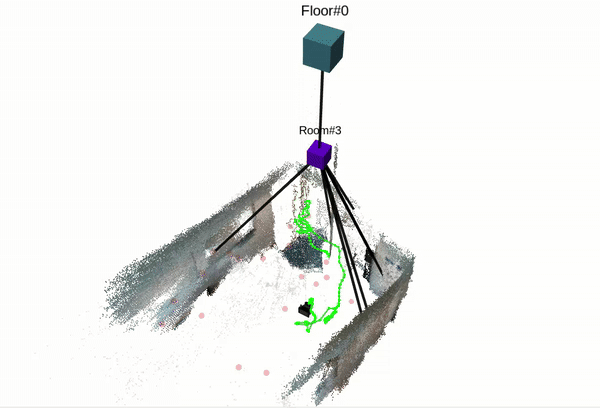

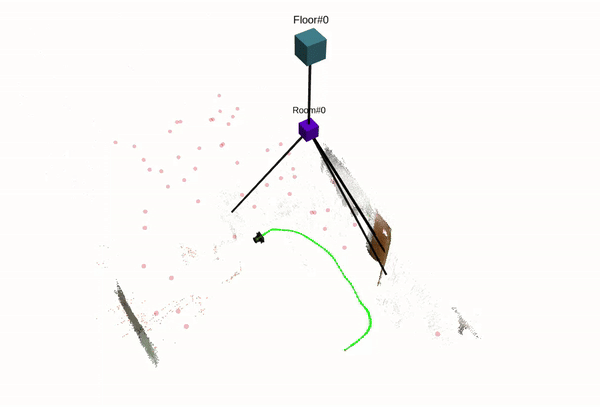

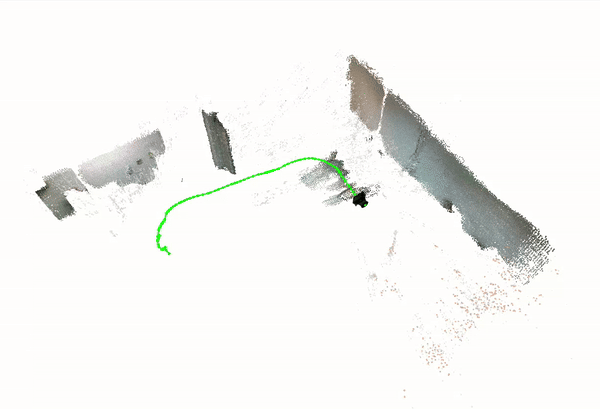

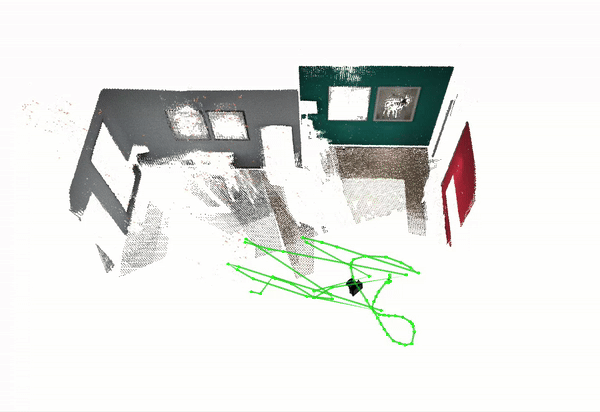

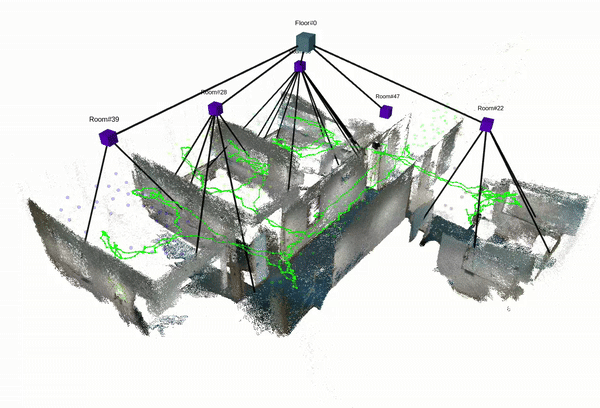

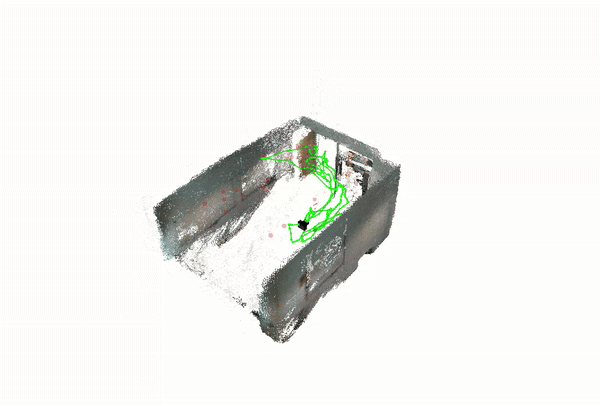

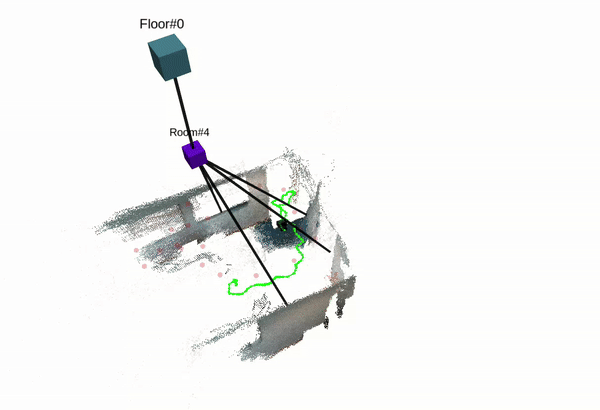

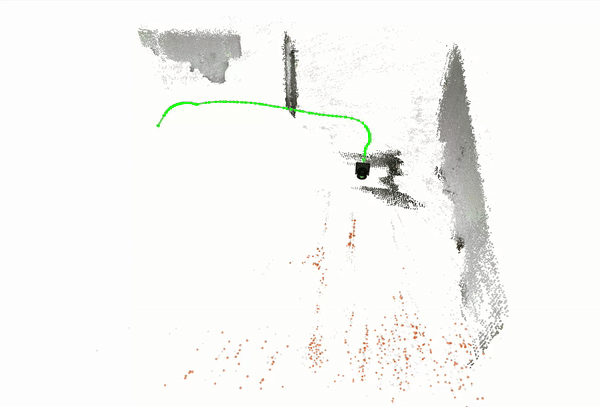

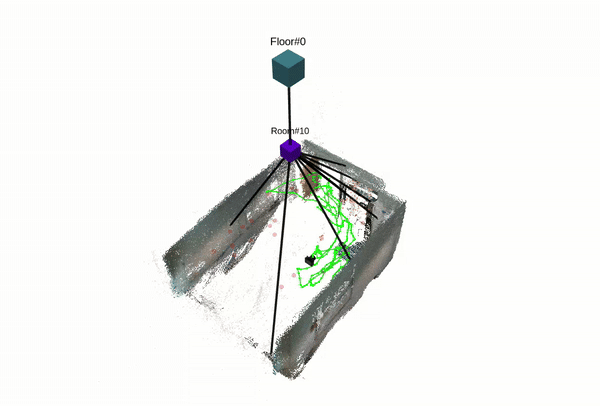

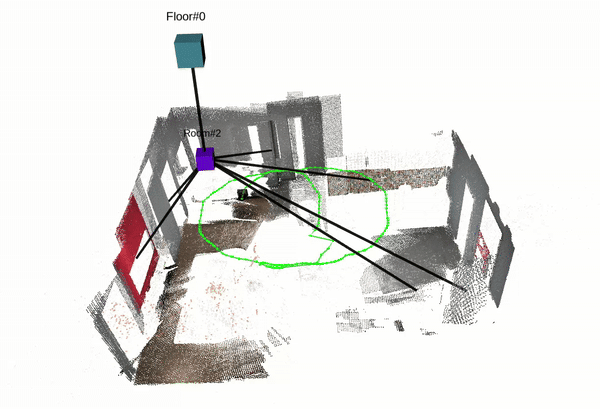

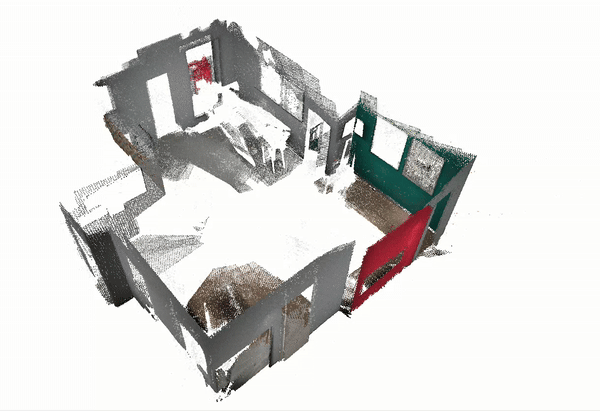

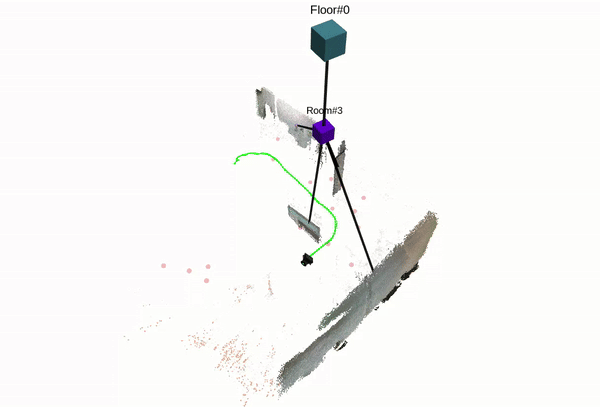

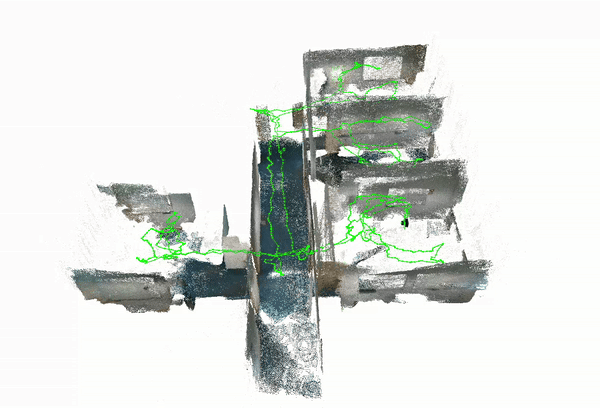

In vS-Graphs, the Building Components Recognition module extracts semantic entities such as walls and ground surfaces from each KeyFrame using a panoptic segmentation backbone that provides pixel-level labels and instance boundaries. A parallel Structural Elements Recognition thread then infers higher-level entities (rooms and floors) by grouping spatially consistent components into enclosed areas and aggregating them across building levels. This hierarchical reasoning enhances spatial understanding and enables geometry-aware optimization in vS-Graphs. Below, you can find some qualitative results of the generated scene graphs on different datasets, where bc and se refer to the building components and structural elements, respectively.

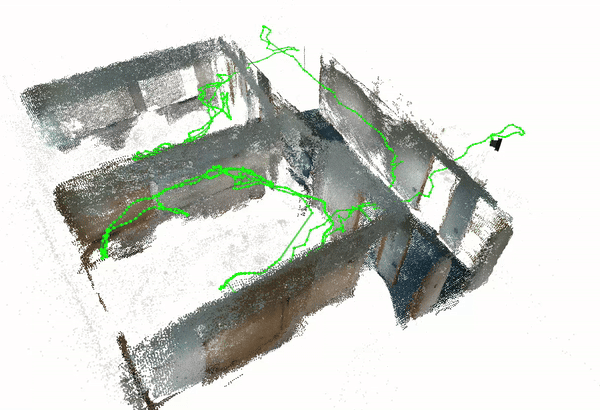

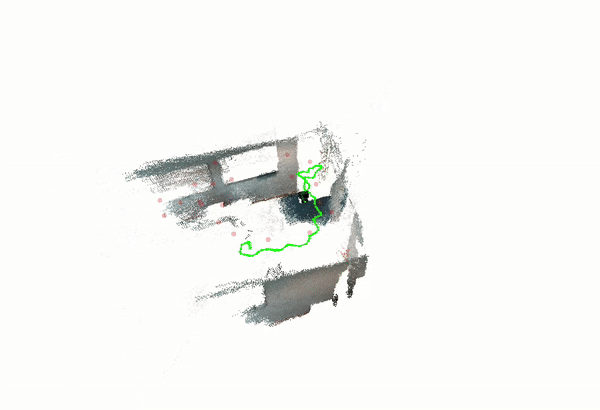

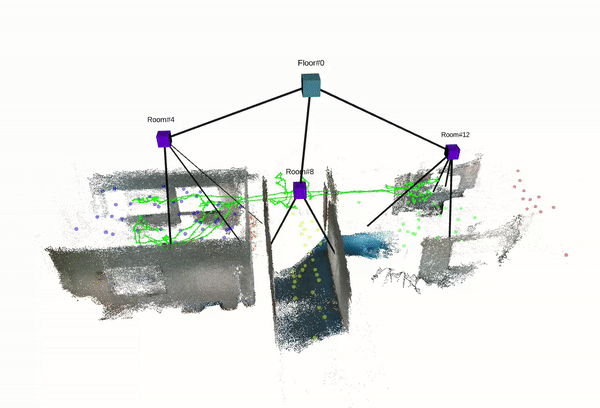

🏷️ AutoSense Dataset

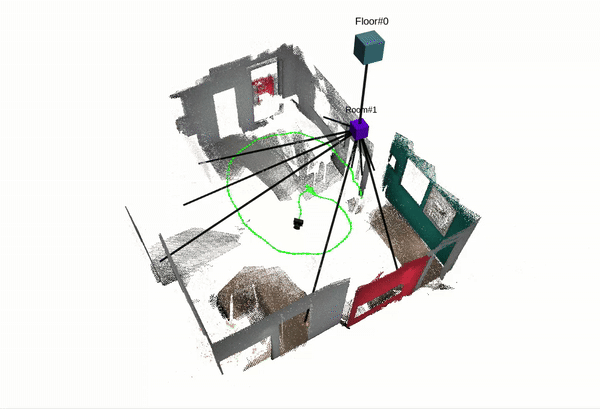

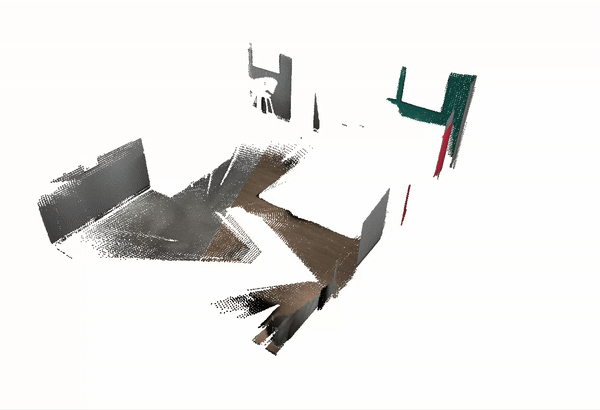

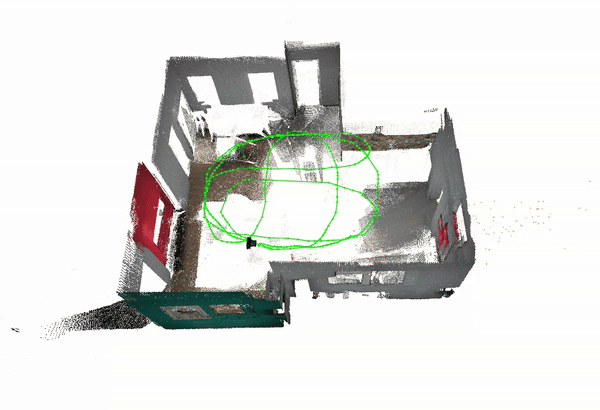

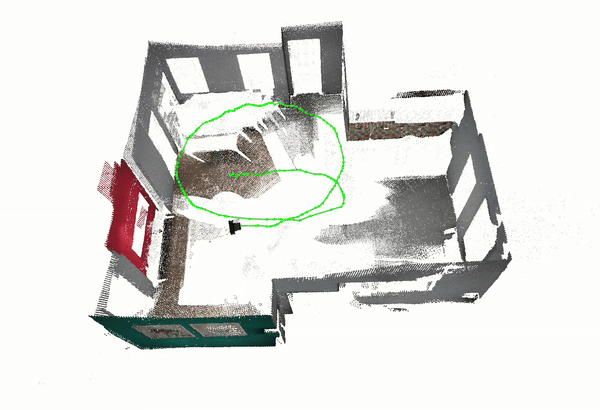

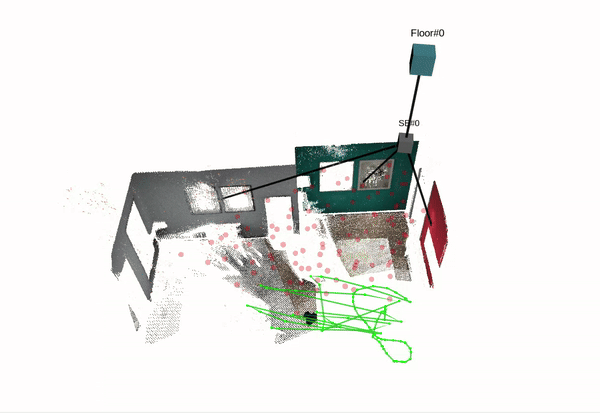

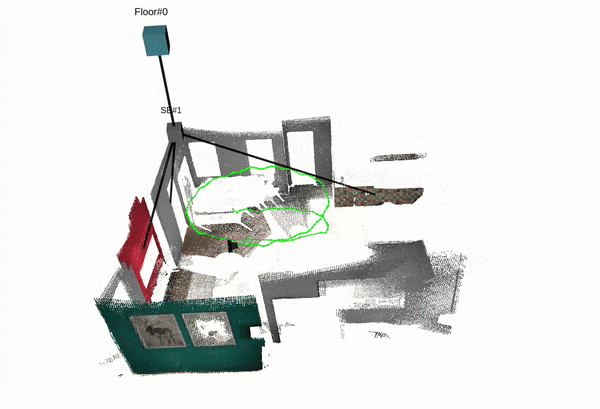

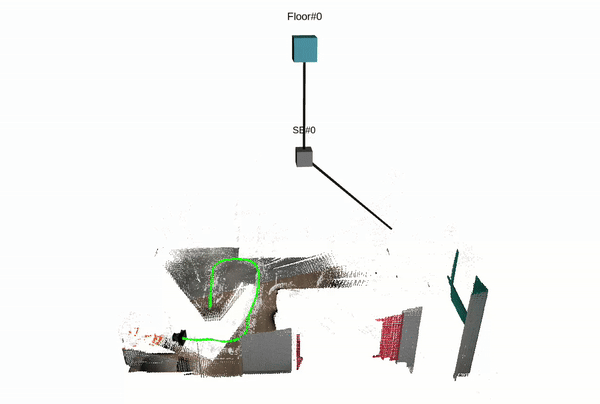

🏷️ ICL Dataset

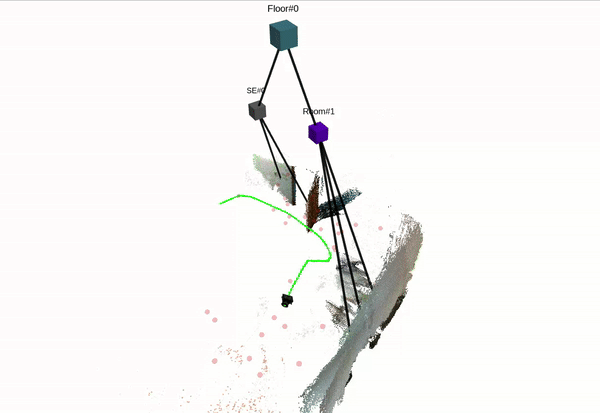

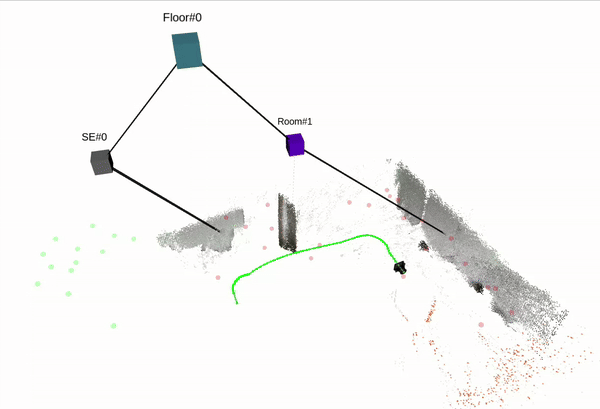

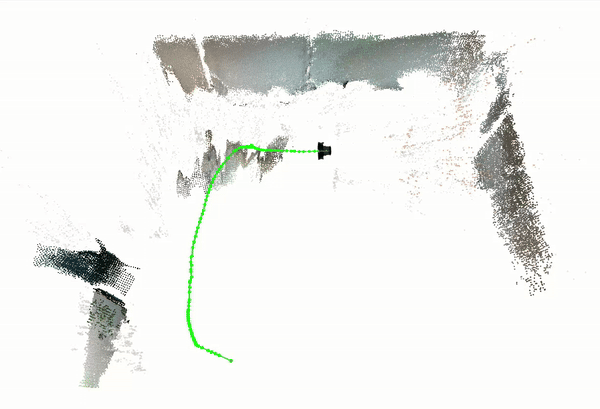

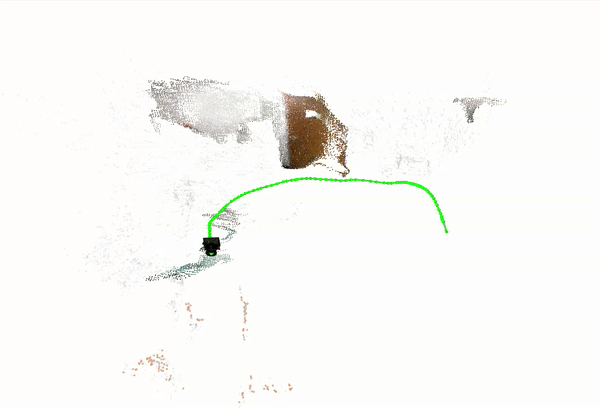

🏷️ OpenLoris Dataset

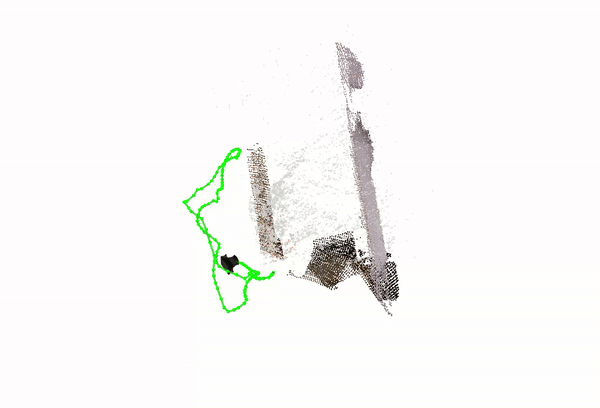

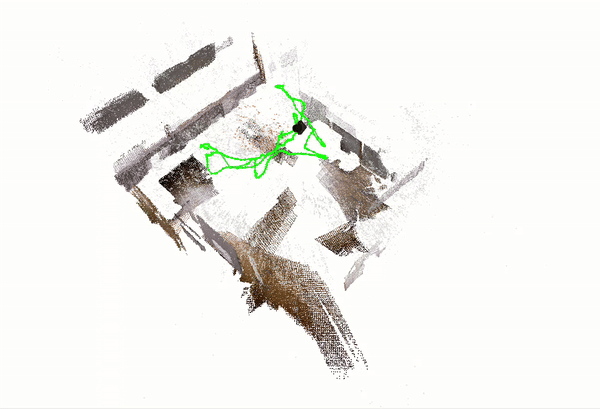

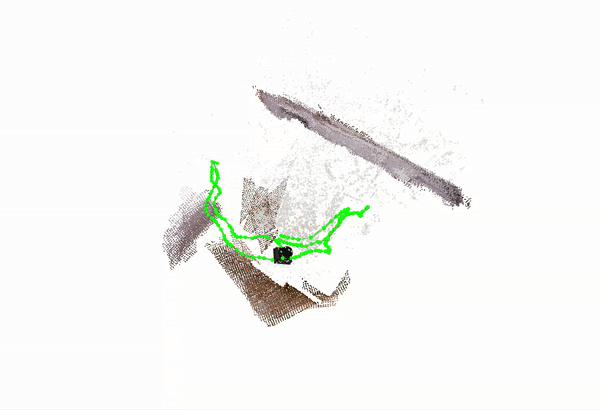

🏷️ TUM-RGBD Dataset
📈 II. Absolute Trajectory Error (ATE)
Below table shows the performance of vS-Graphs on different datasets and compared to the state-of-the-art methods. It is measured using ATE reported in meters. For evaluation, each system was evaluated over eight runs on dataset instances.
📍 III. Mapping Performance
Root Mean Square Error (RMSE) values for ORB-SLAM 3.0 and vS-Graphs across different sequences of the AutoSense dataset (over eight iterations). The results indicate that vS-Graphs generally achieve lower RMSE values, with around 10.15% fewer points (on average).
| Method | Sequence | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|---|
| vGraphs (link) | SR01 | 0.2598 | 0.3102 | 0.2608 | 0.3454 | 0.3409 | 0.3122 | 0.2891 | 0.3246 |
| SR02 | 0.2333 | 0.2165 | 0.2301 | 0.2494 | 0.2499 | 0.2414 | 0.2564 | 0.2853 | |
| SR03 | 0.2749 | 0.5544 | 0.2426 | 0.3509 | 0.2837 | 0.3801 | 0.2725 | 0.2920 | |
| MR01 | 4.3774 | 5.5194 | 6.2763 | 4.7143 | 6.8155 | 4.4640 | 4.8322 | 4.5823 | |
| MR02 | 1.1153 | 1.1836 | 0.9430 | 0.9017 | 0.9210 | 1.0799 | 0.9575 | 0.7648 | |
| MR03 | 1.2933 | 0.2978 | 0.3472 | 0.3137 | 1.1864 | 0.2894 | 0.4122 | 0.2721 | |
| ORB-SLAM 3.0 (link) | SR01 | 0.2772 | 0.4435 | 0.3509 | 0.3964 | 0.2753 | 0.3006 | 0.3995 | 0.3602 |
| SR02 | 0.3111 | 0.2781 | 0.2862 | 0.2668 | 0.3000 | 0.2955 | 0.2408 | 0.2787 | |
| SR03 | 0.3451 | 0.3380 | 0.3279 | 0.2931 | 0.3054 | 0.3728 | 0.3076 | 0.3435 | |
| MR01 | 5.1266 | 5.0866 | 5.6484 | 5.6531 | 4.7557 | 6.2066 | 5.2847 | 5.2242 | |
| MR02 | 1.1828 | 1.1521 | 0.9291 | 0.9648 | 0.9379 | 1.0269 | 1.2719 | 1.0016 | |
| MR03 | 0.2869 | 2.5426 | 1.5765 | 2.3271 | 2.0381 | 0.2725 | 0.6926 | 0.4120 |
Number of map points generated by ORB-SLAM 3.0 and vS-Graphs on the AutoSense dataset (over eight iterations). The measurements show that vS-Graphs produces fewer points than ORB-SLAM 3.0, while positively impacting the mapping accuracy.
| Method | Sequence | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|---|
| vGraphs (link) | SR01 | 6759 | 6704 | 6744 | 6741 | 6875 | 6804 | 6780 | 6842 |
| SR02 | 7304 | 7120 | 7420 | 7457 | 7421 | 7212 | 7382 | 7160 | |
| SR03 | 11764 | 11591 | 11937 | 12054 | 12156 | 11844 | 11471 | 11475 | |
| MR01 | 20607 | 20682 | 19692 | 20714 | 21042 | 20274 | 19433 | 20546 | |
| MR02 | 16838 | 16622 | 16479 | 16563 | 17065 | 17200 | 16905 | 17274 | |
| MR03 | 48364 | 46237 | 48250 | 47850 | 47149 | 49008 | 48442 | 45224 | |
| ORB-SLAM 3.0 (link) | SR01 | 6931 | 7085 | 7057 | 6903 | 7012 | 6894 | 7063 | 7130 |
| SR02 | 7639 | 7378 | 7548 | 7712 | 7540 | 7590 | 7363 | 7377 | |
| SR03 | 13140 | 12631 | 12818 | 12903 | 13021 | 13187 | 12613 | 12990 | |
| MR01 | 22564 | 22685 | 21916 | 22688 | 22552 | 22759 | 22701 | 22506 | |
| MR02 | 18816 | 18196 | 17899 | 18547 | 17722 | 18492 | 18117 | 17643 | |
| MR03 | 54797 | 55342 | 56531 | 55499 | 56056 | 55853 | 56187 | 54545 |
🖼️ IV. Scene Understanding Performance
The results are in the form of reconstructed maps enriched with building components, which are later used to infer the structural elements of the environment.
| Detected / Real | Precision | Recall | |||||
|---|---|---|---|---|---|---|---|
| Method | Sequence | BC | SE | BC | SE | BC | SE |
| S-Graphs (link) | MR01 | 11 / 14 | 4 / 4 | 0.92 | 1.00 | 0.92 | 1.00 |
| MR02 | 12 / 13 | 4 / 4 | 1.00 | 1.00 | 0.92 | 1.00 | |
| MR03 | 20 / 22 | 6 / 6 | 0.90 | 1.00 | 0.95 | 1.00 | |
| Hydra (link) | MR01 | N/A | 4 / 4 | N/A | 1.00 | N/A | 1.00 |
| MR02 | N/A | 6 / 4 | N/A | 0.75 | N/A | 0.75 | |
| MR03 | N/A | 6 / 6 | N/A | 1.00 | N/A | 0.80 | |
| vGraphs (link) | MR01 | 13 / 14 | 4 / 4 | 0.86 | 1.00 | 1.00 | 1.00 |
| MR02 | 13 / 13 | 4 / 4 | 0.92 | 1.00 | 0.92 | 1.00 | |
| MR03 | 23 / 22 | 6 / 6 | 0.96 | 1.00 | 1.00 | 1.00 | |
⏱️ V. Runtime Analysis
vS-Graphs achieves real-time performance with an average processing rate of 22 ± 3 FPS, exceeding the 20 FPS threshold for real-time operation.
