Hand Gestures Plugin

This plugin aims to detect hand landmarks and interpret the landmarks to gestures. These gestures can then be used to control a robot movement for instance.

In addition, the plugin is meant to be used in conjunction with a behaviour tree like the tello_bt. Nevertheless, it can be used in a standalone mode.

🧩 Dependencies

🚀 Standalone Usage

Note

Each command needs to be executed in 2 different terminals and you must source the install/setup.bash which was created in the section above.

  1. Launch the detector node in standalone mode
 ros2 run hand_gestures landmark_detector_node --ros-args -p standalone:=true
  1. Launch the annotator node in standalone mode
 ros2 run hand_gestures landmark_annotator_node --ros-args -p standalone:=true

🏗️ Architecture

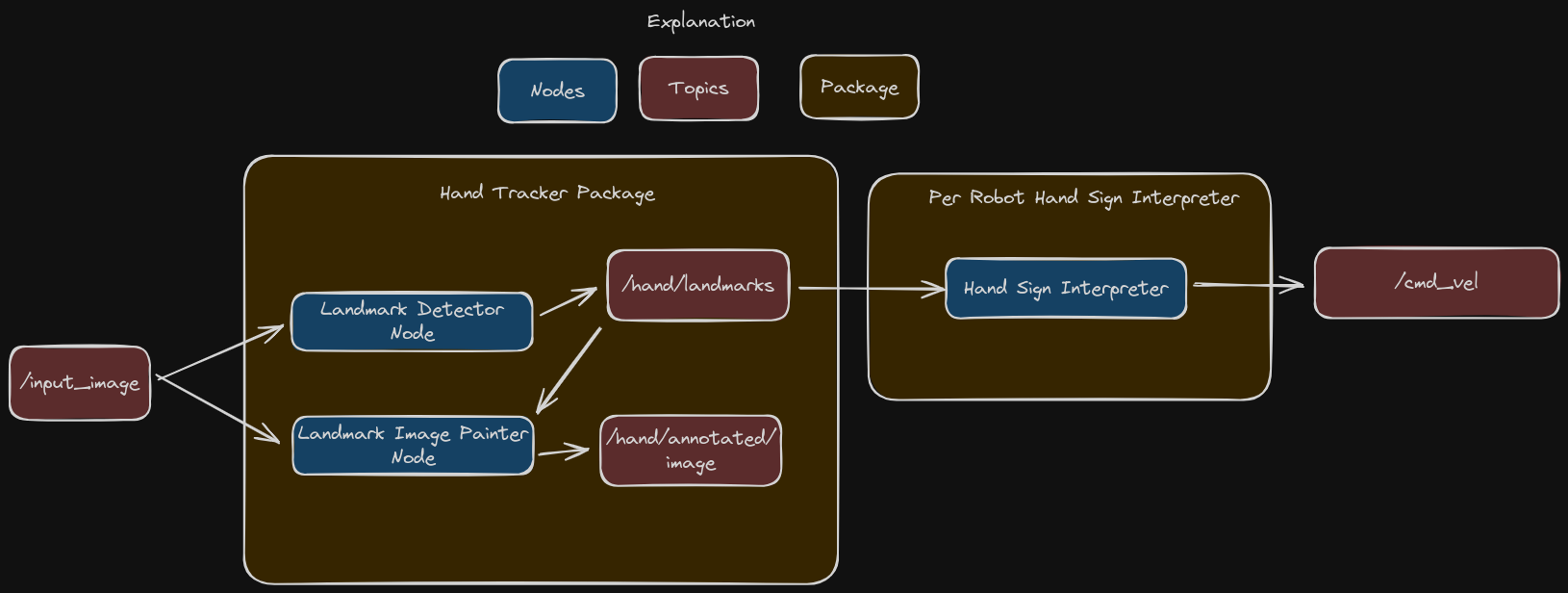

hand gestures architecture

The main idea is to split work into multiple nodes. We first have a detector node, which only goal is to detect the hand landmarks and publish them to a topic /hand/landmarks.

In addition, we have another node annotator which receives the same images which are fed into the detector node and also the landmarks produced by the detector node. Then, it will draw the detected landmarks into the image and publish the annotated image to the topic /hand/annotated/image.

To conclude the hand gesture package, we have the sign_classifier node. It's goal is to receive the hand landmarks and interpret those into hand gestures.

In order to support multiple robots, it is needed to create an extra node which will be depended to the robot itself. This node takes in the interpreted gestures and then translates them into velocity commands and others, like stand up, take-off, etc.

📥 Subscribed Topics

🌐 Landmark Detector Node

Topic Name Message Type Description
/camera/image_raw sensor_msgs/Image) Input image for hand detection.

🌐 Landmark Annotator Node

Topic Name Message Type Description
/camera/image_raw sensor_msgs/Image) Input image use for hand detection.
/hand/landmarks hand_gestures_msgs/Landmakrs) Landmarks detected.

📤 Published Topics

🌐 Landmark Detector Node

Topic Name Message Type Description
/hand/landmarks hand_gestures_msgs/Landmakrs) Output landmarks topic for detected hands.

🌐 Landmark Annotator Node

Topic Name Message Type Description
/hand/annotated/image sensor_msgs/Image) Annotated image with landmarks for detected hands.

⚙️ Parameters

🌐 Landmark Detector Node

Parameter Name Description Default
img_input_topic Input image topic name. /camera/image_raw
landmarks_topic Detected landmarks on image. hand/landmarks
num_hands Maximum number of hands to detect. 2
min_detection_confidence Minimum confidence to detect a hand. 0.5
min_tracking_confidence Minimum confidence to track a hand. 0.5

🌐 Landmark Annotator Node

Parameter Name Description Default
img_input_topic Input image topic name. /camera/image_raw
annotated_img_topic Annotated image with landmarks topic name. /camera/image_raw
landmarks_topic Detected landmarks on image. hand/landmarks
