Robot Behavior Tree

The robot_bt package implements a behavior tree (BT) for managing and executing plugins that define various behaviors for the robot. This package uses the py-trees library to structure and run the behavior tree.

What is a Behavior Tree?

A behavior tree is a model that organizes defined behaviors into a tree structure, allowing them to be executed (or "ticked") in each iteration. While similar to a Finite State Machine (FSM), a behavior tree supports more complex scenarios with greater flexibility and simplicity.

In py_trees, a behavior tree is built using nodes, decorators, and composites, each with specific functionality to control the flow of execution. For more information, visit py_trees documentation


Common Nodes Used

Action Nodes

Action nodes perform specific tasks when ticked. They execute actions and return a status (SUCCESS, FAILURE, or RUNNING).

  • py_trees.behaviour.Behaviour: The base class for any node you desire to create which does not require ROS.
  • robot_bt.nodes.actions.Action: The base class for any node you desire to create which relies on ROS.
  • robot_bt.nodes.PluginClient: A node which is used to execute a plugin.

Condition Nodes

  • robot_bt.nodes.conditionals.CanRunPlugin: A conditional node which can be used to check if a plugin is currently selected to run.

Condition nodes check a condition and return SUCCESS if it is met, otherwise FAILURE.


Common Decorators Used

Decorators modify the behavior of their child node based on specific rules or conditions.

  • py_trees.decorators.Inverter: Inverts the result of the child node (e.g., SUCCESS becomes FAILURE).

Common Composites Used

Composite nodes are used to group multiple child nodes and control their execution flow.

  • py_trees.composites.Sequence: Executes its children in order until one fails. Returns:

    • SUCCESS if all children succeed.
    • FAILURE if any child fails.
    • RUNNING if a child is still running.
  • py_trees.composites.Selector: Executes its children in order until one succeeds. Returns:

    • SUCCESS if any child succeeds.
    • FAILURE if all children fail.
    • RUNNING if a child is still running.
  • py_trees.composites.Parallel: Executes all children simultaneously. Returns:

    • SUCCESS if the required number of children succeed.
    • FAILURE if too many children fail or if required conditions are not met.

Creating a Behavior Tree

By default, the behavior tree used is robot_bt.bt.DefaultBT. To create your own custom behavior tree, follow these steps:

  1. Create a New File: Add a new Python file in the robot_bt.bt directory and name it appropriately.
  2. Define the bootstrap Function:
    • Your file must define a function named bootstrap(ros_node: rclpy.Node) -> py_trees.behaviour.Behaviour.
      • This function will be called by the BT ROS node to load your behavior tree.
      • It should return the root of your tree.
  3. Update Parameters: Modify the parameter file to set the bt_name field to your file name (without the .py extension).

Example

Example

Python Code

robot_bt/bt/simple_bt.py
import py_trees
from rclpy.node import Node

def create_tree(): # Leaf nodes
    success_node = py_trees.behaviours.Success(name="Always Succeed")
    failure_node = py_trees.behaviours.Failure(name="Always Fail")

    # Decorator
    invert_failure = py_trees.decorators.Inverter(child=failure_node)

    # Composite
    sequence = py_trees.composites.Sequence(name="Simple Sequence")
    sequence.add_children([success_node, invert_failure])

    return sequence

def bootstrap(ros_node: Node) -> py_trees.behavior.Behaviour:
    tree = create_tree()
    return tree

Parameters File

config/params.yaml
bt_server:
    ros__parameters:
        bt_name: simple_bt

Explaining Default BT

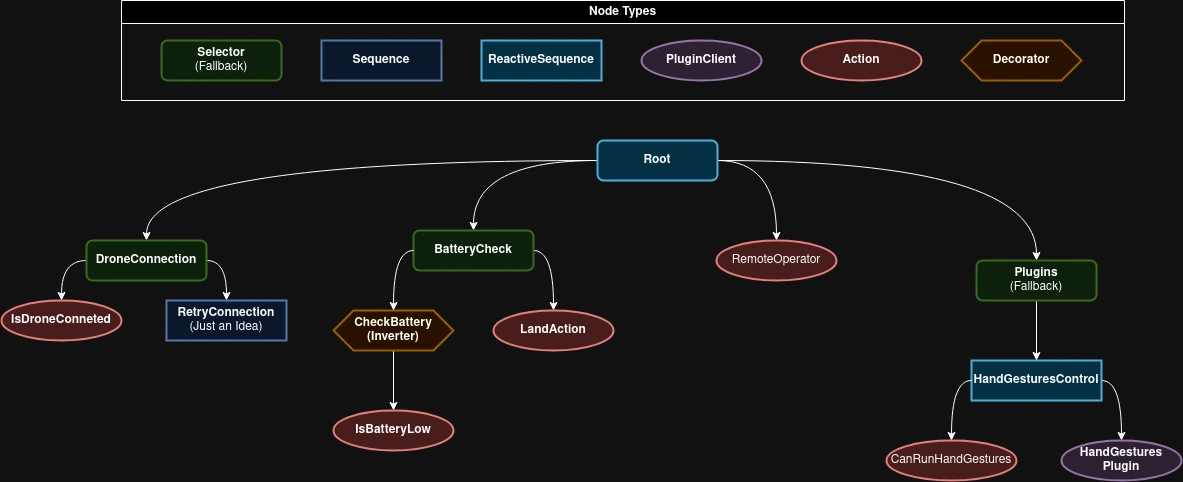

Below is the graphical representation of the DefaultBT behavior tree.

Note

  • Reactive sequence is a sequence without memory, meaning that it will always start from the first child.
  • Sequence has memory, meaning if one of it's children returns RUNNING, the next time it ticks, it will tick directly that child.

Default BT Schematic

The structure and purpose of each part of the tree are as follows:


Root: DefaultBT

  • Type: Sequence (no memory)
  • Purpose: Ensures all the children (subsystems) are checked or executed in order.

1. Drone Connection Checker

  • Type: Selector (no memory)
  • Child: IsDroneConnected
  • Purpose: Verifies if the drone is connected.
    • If the connection is successful (SUCCESS), it moves to the next step.
    • If the connection is not established (FAILURE), the tree stops ticking and the sequence fails.

2. Battery Checker

  • Type: Selector (no memory)
  • Children:
    • IsBatteryLow: Checks if the battery is low. If it is, returns SUCCESS.
    • Inverter (decorator) → LandAction: If the battery is not low, the decorator inverts the result of the LandAction.
      • The LandAction would normally return FAILURE (since landing is not required when the battery is okay), but the Inverter converts it to SUCCESS.
  • Purpose: Ensures that if the battery is low, the drone lands safely. Otherwise, it allows the behavior tree to continue execution.

3. Remote Operator

  • Type: Action Node
  • Name: RemoteOperator
  • Purpose: Checks keyboard input from robot_control_station and change selected plugin from blackboard to hand gestures plugin if selected.
    • Alawas returns SUCCESS

4. Plugins Selector

  • Type: Selector (no memory)
  • Children:

    1. Hand Gestures Control (no memory):
      • CanRunPlugin: Checks if the "landmark_detector_node" plugin is enabled and can run.
      • PluginClient: Executes the plugin responsible for hand gesture control, enabling drone interaction using visual gestures.
  • Purpose: Extends the drone's capabilities by enabling additional plugins, such as gesture control. If no plugin is active or available, this branch fails, but the rest of the tree can continue.


Example

robot_bt/bt/default_bt.py
# ...
class DefaultBT(py_trees.composites.Sequence):
    # ...
    def build_tree(self):
        drone_connection = py_trees.composites.Selector(
            "DroneConnection",
            memory=False,
            children=[
                IsDroneConnected("IsDroneConnected"),
            ],
        )

        battery_checker = py_trees.composites.Selector(
            "BatteryChecker",
            memory=False,
            children=[
                IsBatteryLow("IsBatteryLow", self.node),
                py_trees.decorators.Inverter(
                    "LandActionInverter", LandAction("LandAction", self.node)
                ),
            ],
        )

        remote_operator = RemoteOperator("RemoteOperator", self.node)

        plugins = py_trees.composites.Selector(
            "Plugins",
            memory=False,
            children=[
                py_trees.composites.Sequence(
                    "HandGesturesControl",
                    memory=False,
                    children=[
                        CanRunPlugin("CanRunHandGestures", "landmark_detector_node"),
                        PluginClient(
                            "HandGesturesPlugin", "landmark_detector_node", self.node
                        ),
                    ],
                )
            ],
        )

        self.add_children([drone_connection, battery_checker, remote_operator, plugins])


def bootstrap(ros_node: Node) -> py_trees.behaviour.Behaviour:
    return DefaultBT(ros_node)
